Products list
Defi-Link ADVANCE System
The Defi-Link ADVANCE system allows up to 7 gauges and displays in total to be attached to the control unit with a single “DAISY CHAIN” wiring system. DSDF can be connected separately from the 7 counts.
| Category (product name) | Summary | Link system | Color of dial during daytime | Illumination color during nighttime | Size | Varieties |

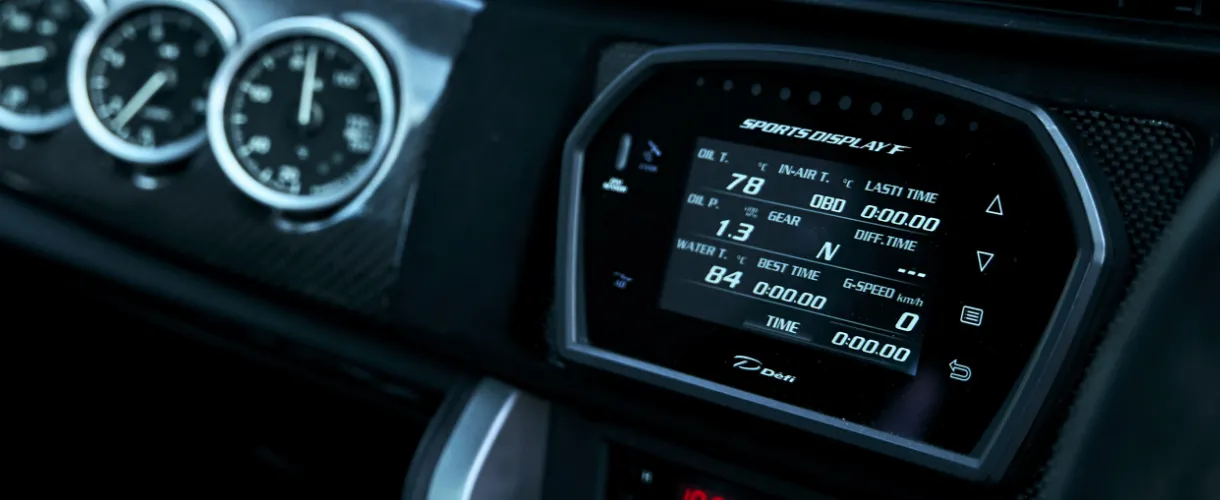

 Defi Sports Display F (DSDF) |
Analog gauge series of ADVANCE System Needs to be connected to ADVANCE Control Unit Metallic design |
In case you want to send signals to DSDF from your ADVANCE system, ADVANCE Control Unit is necessary. | Full color TFT | Full color TFT | one size | turbo oil press fuel press oil temp water temp exhaust temp tachometer throttle and others |

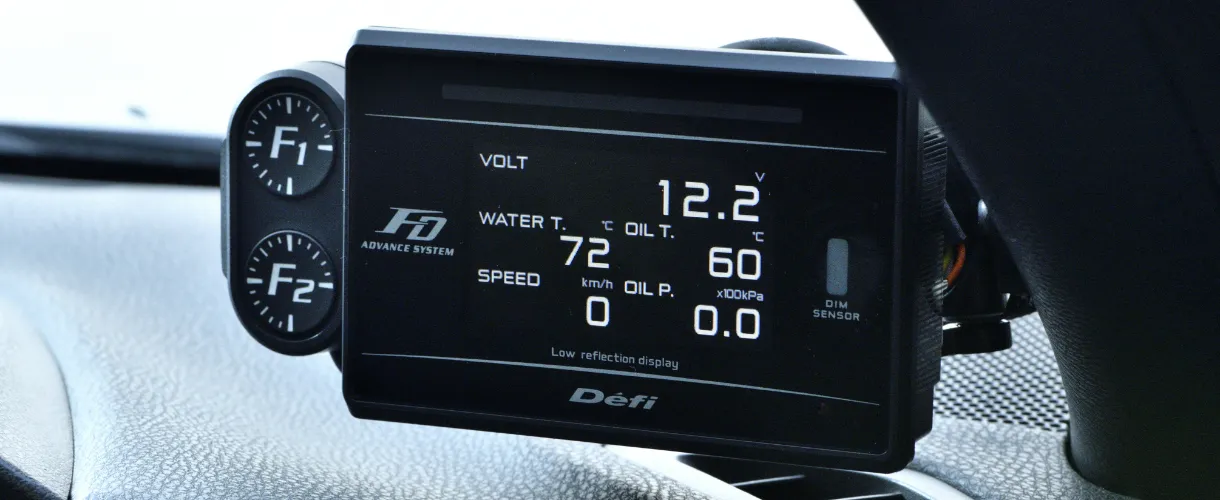

 ADVANCE FD |
Multi digital TFT display of ADVANCE System Needs to be connected to ADVANCE Control Unit |
ADVANCE system Control unit necessary |
Full color TFT letters/nubers: white |
Full color TFT | one size | turbo speed tachometer oil press fuel press oil temp water temp exhaust temp odometer/tripmeter and others |

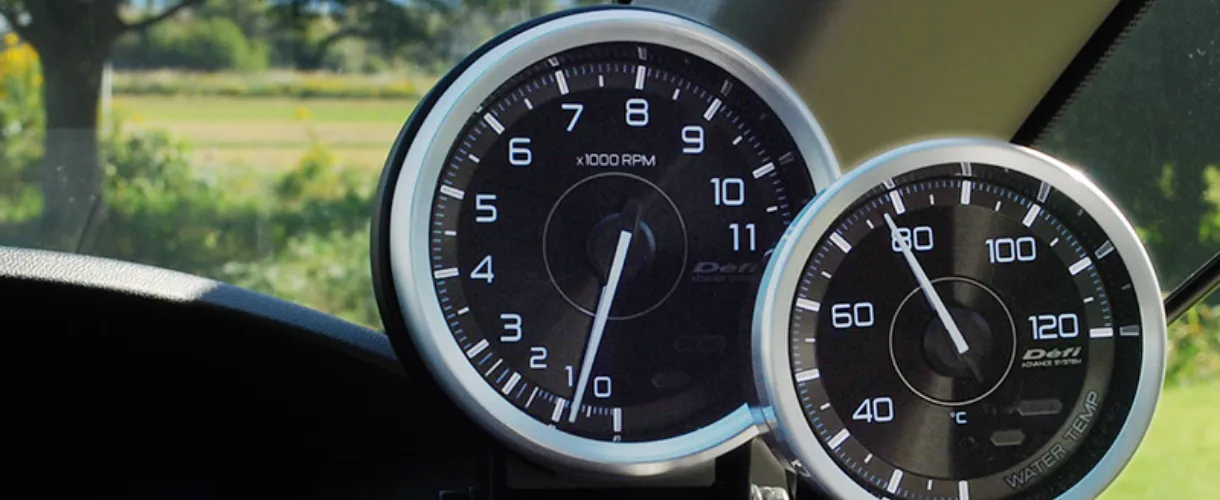

 ADVANCE A1 |
Analog gauge series of ADVANCE System Needs to be connected to ADVANCE Control Unit Metallic design |
ADVANCE system Control unit necessary |
 IGN OFFThe numbers are unvisible until ignition is turned on. |
 White The color cannot be changed. |
dia 60mm 80mm |
turbo oil press fuel press oil temp water temp exhaust temp tachometer |
 ADVANCE BF |
Analog BF gauge series of ADVANCE System Needs to be connected to ADVANCE Control Unit |
ADVANCE system Control unit necessary |
|
 white/amber red/blue The color cannot be changed. |
dia 60mm 80mm |
turbo oil press fuel press oil temp water temp exhaust temp tachometer |

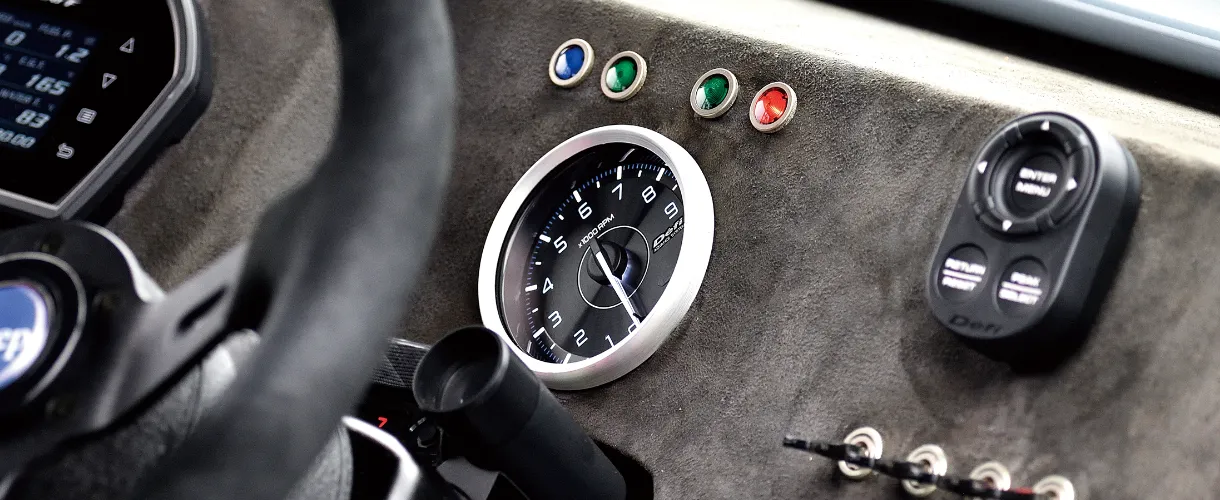

| Analog gauge series of ADVANCE System Needs to be connected to ADVANCE Control Unit |
ADVANCE system Control unit necessary |
 white/black The dial face is visible during daytime. |
 classic green/classic white The color can be changed between two colors. |
dia 52mm 60mm 80mm |
turbo oil press fuel press oil temp water temp exhaust temp tachometer |
|

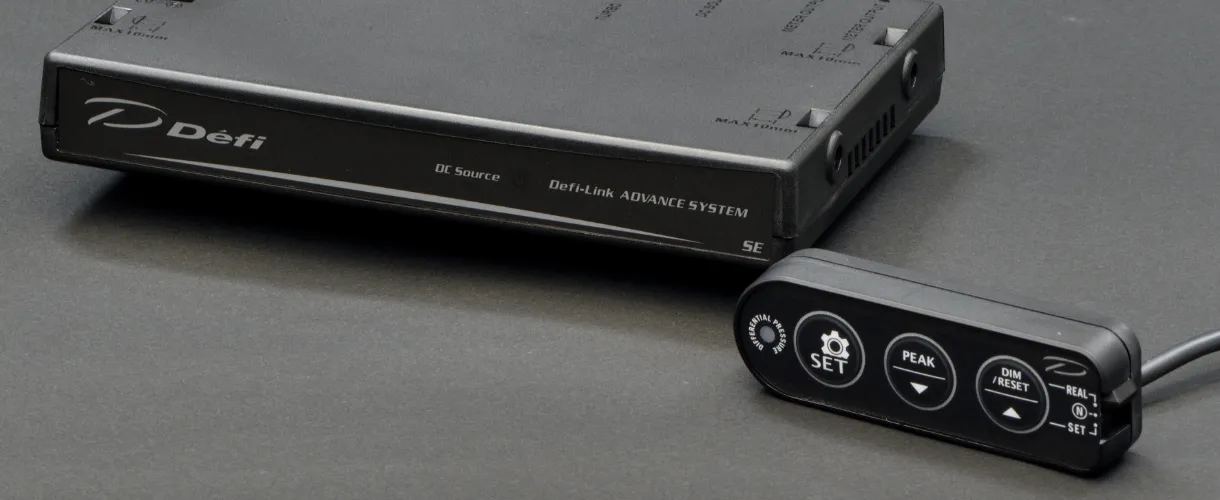

 ADVANCE Control Unit SE |
Control unit to operate ADVANCE gauges and displays | ADVANCE system For use of ADVANCE gauges and displays |
– | switch illumination: white | one size | – |

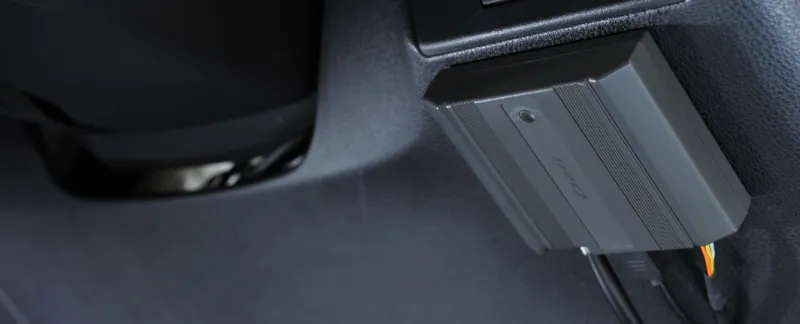

| A unit to operate gauges by taking out ISO-CAN infrmation from an OBDII connector (without sensors)
It can send signals of speed, engine speed, and illumination ON/OFF signal to an ADVANCE unit. |
ADVANCE Control Unit is not necessary (In case you want to send signals to your ADVANCE system, ADVANCE Control Unit is necessary.) |
– |
– | one size | turbo tachometer water temp can be linked without sensors. |
|
| Category (product name) | Summary | Link system | Color of dial during daytime | Illumination color during nighttime | Size | Varieties |
IGN OFF
Products other than Defi-Link ADVANCE System
| Category (product name) | Summary | Link system | Color of dial during daytime | Illumination color during nighttime | Size | Varieties |

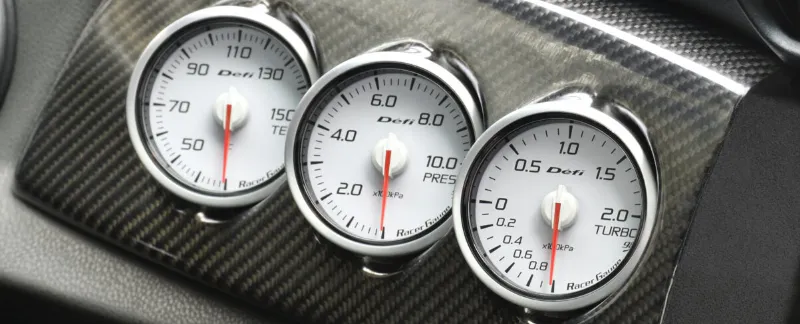

 Racer Gauge N2 |
Analog gauge series which are standalone | Cannot be linked Control unit is not necessary |
 IGN OFFSI models: white USDM models: red The dial face is unvisible until ignition is turned on. |
   SI models: white USDM models: red The color cannot be changed. |
dia 52mm 60mm 80mm |
turbo press temp exhaust temp volt tachometer |

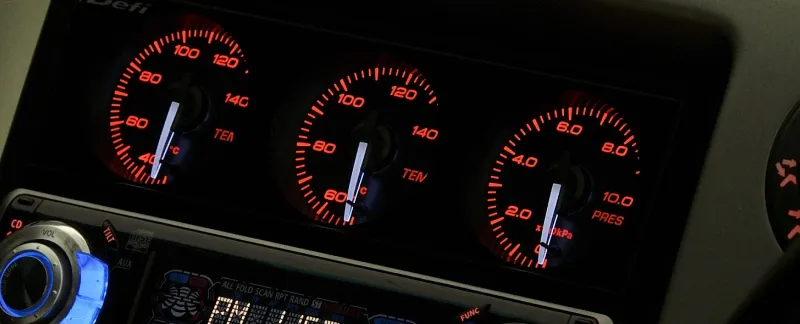

 DIN-Gauge Style21 |
1-din sized triple gauges which consists of 1 press and 2 temp gauges | Cannot be linked Control unit is not necessary |
 black The dial face is visible during daytime. |
 white/red The color cannot be changed. |
3 gauges in one-din size | set of 2 temps and 1 press |
| Category (product name) | Summary | Link system | Color of dial during daytime | Illumination color during nighttime | Size | Varieties |
End of sale products
| Category (product name) | When ended | Summary | Link system | Color of dial during daytime | Illumination color during nighttime | Size | Varieties |

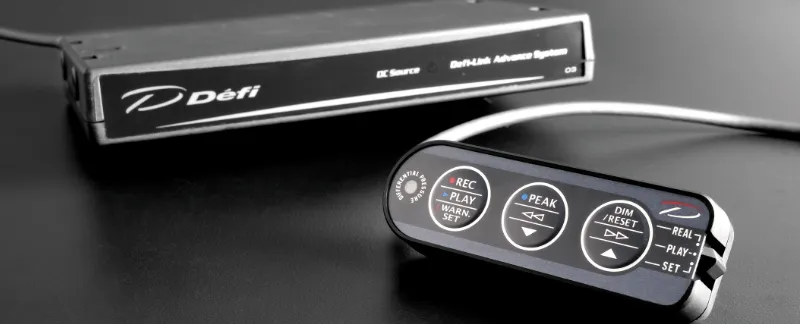

 ADVANCE Control Unit |
2022/11 | Control unit to operate ADVANCE gauges and displays | ADVANCE system For use of ADVANCE gauges and displays |
– | switch illumination: white | one size | – |
| 2022/3 | The radio frequency device that can transmit the vehicle data to an iOS/Android mobile device. |
ADVANCE system *Control unit is not necessary if you use the only OBDII. |
By dedicated Apps for iOS/Android. | By dedicated Apps for iOS/Android. | iOS/Android mobile device | speed tachometer oil press fuel press oil temp water temp exhaust temp voltage and others |
|

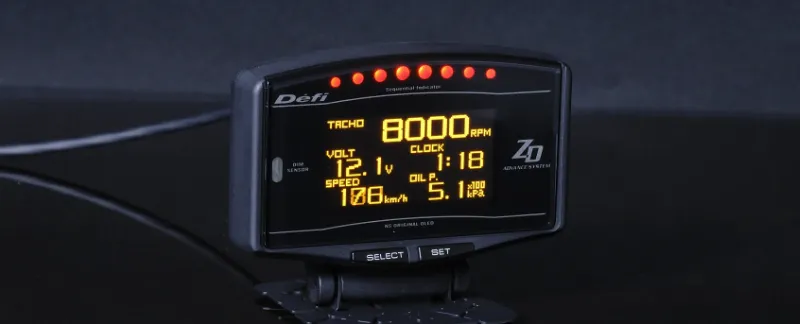

 ADVANCE ZD |
2021/2 | Multi digital OLED display of ADVANCE System Needs to be connected to ADVANCE Control Unit |
ADVANCE system Control unit necessary |
Amber | Amber | one size |
speed |
 ADVANCE ZD CSP |
2021/2 | Set of ADVANCE unit, ZD and 3 sensors (Club Sports Package) |
ADVANCE system | – | – | – | Same as ZD Oil press, oil temp, and water temp sensors are included in the package |

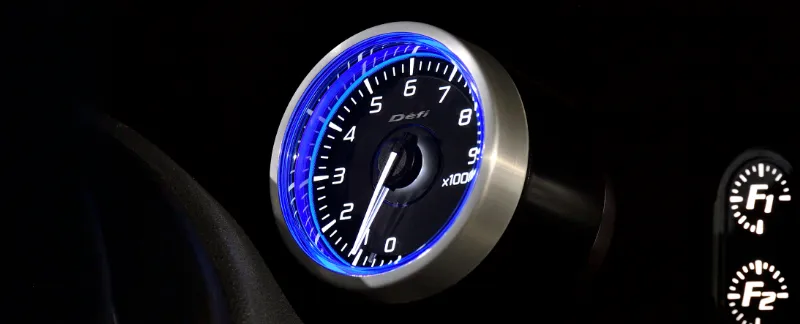

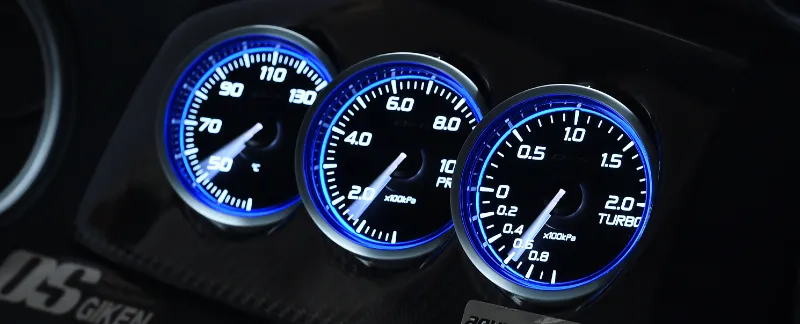

 ADVANCE CR |
2020/2 | Analog gauge series of ADVANCE System Needs to be connected to ADVANCE Control Unit |
ADVANCE system Control unit necessary |
 white/black The dial face is visible during daytime. |
 blue/amber red/white The color can be changed between two colors. |
dia 52mm 60mm |
turbo oil press fuel press oil temp water temp exhaust temp tachometer |

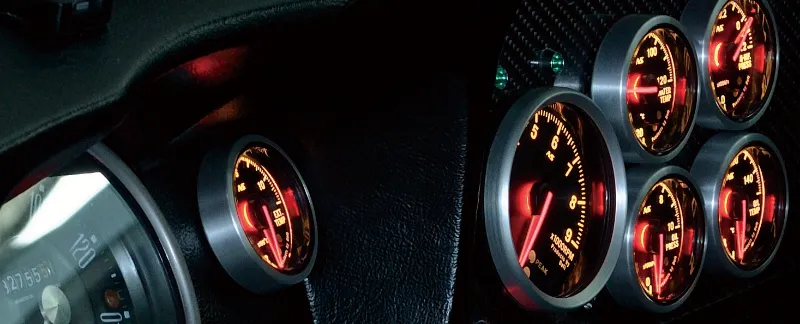

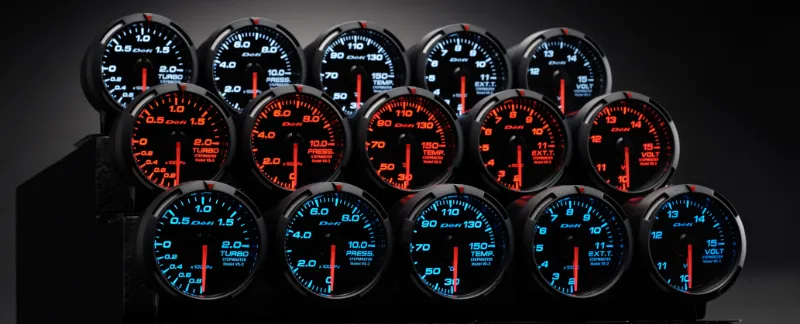

 Racer Gauge |
2019/12 | Analog gauge series which are standalone | Cannot be linked Control unit is not necessary |
 IGN OFFblue/red/white The dial face is unvisible until ignition is turned on. |
 blue/red/white The color cannot be changed. |
dia 52mm 60mm 80mm |
turbo press temp exhaust temp volt tachometer |
