Sensor specification

  • Please confirm what commercial parts you need to purchase before installing sensors.
  • Defi sensors’ thread size is all 1/8PT.
  • The diameter of the end of temperature sensor is 7mm.

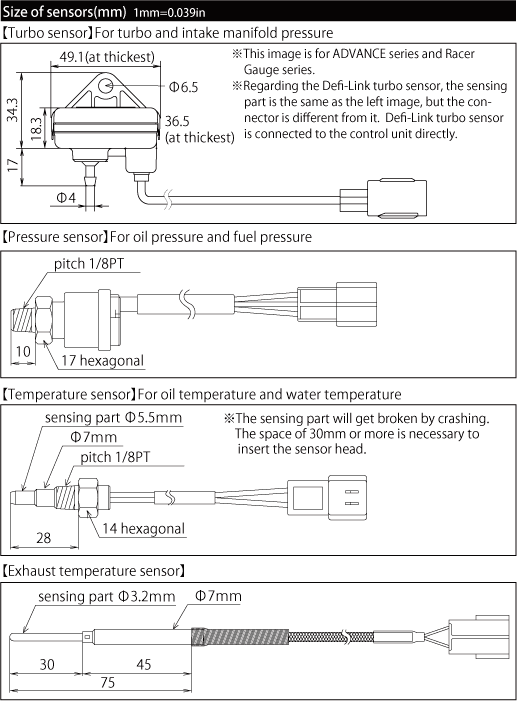

sensor dimension

sensor dimension

Turbo/Boost sensor for Max30PSI/200kPa(ADVANCE system and Racer Gauge series): black

Turbo/Boost sensor for Max30PSI/200kPa
  • Turbo sensor PDF06503S
  • Turbo sensor wire (2.5m) PDF06505H

Turbo/Boost sensor for Max45PSI/300kPa(ADVANCE system and Racer Gauge series): gray

Turbo/Boost sensor for Max45PSI/300kPa
  • Turbo sensor PDF14604S
  • Turbo sensor wire (2.5m) PDF06505H
Turbo sensor for Defi-Link series

Turbo sensor for Defi-Link series

PDF00603S (sensor wire integrated)

  • When using a turbo sensor for ADVANCE gauges and Racer Gauges, you need turbo sensor wire. Turbo sensor wire is included in the package of product.
  • Turbo sensor wire is not necessary when using a turbo sensor for Defi-Link gauges.
  • Sensor for ADVANCE and Racer Gauges and sensor for Defi-Link gauges are NOT common.
  • Turbo sensor extention wire can be used for ADVANCE and Racer Gauges. Cannot be used for Defi-Link gauges.
  • Boost Gauge (Max 30PSI) Package includes rubber hoses and a three-way joint (Φ4).But Boost Gauge Package(Max 45PSI) does NOT include rubber hoses and a three-way joint (Φ4). Commercial items are required.
  • Hose band
  • Three-way joint (in the case that the inner diameter of your vehicle vacuum hose is more than Φ4 or you purchase Boost Gauge 45PSI.)
  • It is required to use the hose which can withstand more than 58 PSI.
Hose band
Three-way joint
tie wrap

The sensor for oil pressure and fuel pressure are common.

ADVANCEシリーズ、Racer Gauge用ターボセンサー
  • Pressure sensor (1/8PT) PDF00703S for ADVANCE, Racer Gauge, DIN-Gauge, and Defi-Link seires
  • Oil pressure sensor wire (3m) PDF08105H for ADVANCE series
  • Oil pressure sensor wire (2.5m) PDF00704H for Defi-Link series
  • Fuel pressure sensor wire (2.5m) PDF06603H for ADVANCE series and Racer Gauge Pressure
  • Fuel pressure sensor wire (2.5m) PDF00803H for Defi-Link series
  • Pressure sensor wire (3m) PDF05604H for DIN-Gauge
  • When using pressure sensor, pressure sensor wire is necessary. Pressure sensor wire is included in the package of the product.
  • Sensor attachment commercially available is necessary to install sensor.
  • The sensor for ADVANCE, Racer Gauge, and Defi-Link series are all common.
  • The sensor wire is different between Defi-Link series and others.
  • Pressure sensor extention wire are common all series.
  • 1/8PT adapter or 1/8PT sensor attachment
  • sealing tape
サンドイッチタイプの1/8PTセンサーアタッチメント
1/8PTアダプター
シールテープ

Sensor attachment is recommended.

  • 1/8PT three-way joint
  • 1/8PT hose union
  • hose band
  • sealing tape
1/8PT three-way joint 1/8PT hose union
hose band
sealing tape

The sensor for oil temperature and water temperature are common.

Temperature sensor
  • Temperature sensor (1/8PT) PDF00903S for ADVANCE, Racer Gauge, DIN-Gauge, and Defi-Link seires
  • Oil temperature sensor wire (3m) PDF05602H for ADVANCE, Racer Gauge temperature, and DIN-Gauge temperature1
  • Oil temperature sensor wire (2.5m) PDF00904H for Defi-Link series
  • Water temperature sensor wire (3m) PDF05603H for ADVANCE series and DIN-Gauge temperature2
  • Water temperature sensor wire (2.5m) PDF01003H for Defi-Link series
  • When using temperature sensor, temperaure sensor wire is necessary. Temperature sensor wire is included in the package of the product.
  • Sensor attachment commercially available is necessary to install sensor.
  • The sensor for ADVANCE, Racer Gauge, and Defi-Link series are all common.
  • The sensor wire is different between Defi-Link series and others.
  • Temperature sensor extention wire are common all series.
  • 1/8PT sensor attachment
  • sealing tape
1/8PT sensor attachment
sealing tape
  • 1/8PT sensor attachment
  • hose band
  • sealing tape
hose band / sealing tape
sealing tape
Exhaust temperature sensor
  • Exhaust temperrature sensor PDF01103S for ADVANCE, Racer Gauge, and Defi-Link series
  • Exhasut temperature sensor wire (2.5m) PDF06803H for ADVANCE and Racer Gauge
  • Exhaust temperature sensor wire (2.5m) PDF01104H for Defi-Link series
  • Exhaust temperature sensor fitting (1/8PT) PDF01105G for ADVANCE, Racer Gauge, and Defi-Link series (Fitting is included in the product package.)
  • When using exhaust temperature sensor, exhaust temperaure sensor wire is necessary. Exhaust temperature sensor wire is included in the package of the product.
  • Sensor attachment commercially available is necessary to install sensor.
  • The sensor for ADVANCE, Racer Gauge, and Defi-Link series are all common.
  • The sensor wire is different between Defi-Link series and others.
  • Temperature sensor extention wire are common all series.

There is no need to purchase additional parts.

Sensor and sensor wire are included in the gauge packages.

For example, temperature sensor and oil temperature sensor wire are included in the oil pressure gauge package. Sensor and sensor wire are not included in display products such as ADVANCE ZD and Defi-Link Display.

Sets of sensor and sensor wire are sold as optional (or repair) parts. If you purchase ADVANCE ZD or Defi-Link Display and then sensor and sensor wire additionally, the sensor sets are more reasonable than purchasing separately.

  • Sensor set for Defi-Link System and for ADVANCE System are different. The production of Sensor sets for Defi-Link System was ended in March, 2012.
  • Sensors are common in all series products except turbo sensor, but the sensor wires are not common.
    Ex. Temperature sensor is common between Defi-Link and ADVANCE gauges, but the sensor wire is not common, so sensor sets are not common either.
    Ex. If you replace Defi-Link Display by ADVANCE ZD, you don’t have to change the sensors because sensors are common. Instead, sensor wires and ADVANCE unit needs to be purchased.
  • When purchasing, confirm respondency of each part.
  • If the length of sensor wire is not enough, purchase sensor extention wire additionally. Sensor extention wires are common in all series.
  • Sensors, sensor wires, and sensor extention wires are sold separately too.
Parts search
Sensor set Components Parts No. for ADVANCE System Parts No. for Defi-Link System
Turbo Sensor set
(For Max30PSI/200kPa)
Turbo sensor, turbo sensor wire, hose, three-way joint, manual, warranty card PDF07806SS N/A
Oil Press Sensor set Pressure sensor, oil pressure sensor wire, manual, warranty card PDF08106SS PDF00713SS
(EOL in march, 2012)
Fuel Press Sensor set Pressure sensor, fuel pressure sensor wire, manual, warranty card PDF08205SS
(common to Racer Gauge press)
PDF00806SS
(EOL in march, 2012)
Oil Temp Sensor set Temperature sensor, oil temperature sensor wire, manual, warranty card PDF08305SS
(common to Racer Gauge temp/DIN temp1)
PDF00908SS
(EOL in march, 2012)
Water Temp Sensor set Temperature sensor, water temperature sensor wire, manual, warranty card PDF08405SS
(common to DIN temp2)
PDF01006SS
(EOL in march, 2012)
Exhaust Temp Sensor set Exhaust temperature sensor, water exhasut temperature sensor wire, fitting, manual, warranty card PDF08505SS
(common to Racer Gauge exhaust temp)
PDF01114SS
(EOL in march, 2012)
