Defi-Link ADVANCE Control Unit SE is necessary to operate ADVANCE gauges and displays. All settings and operations of the ADVANCE system are handled by this product.
Black panel/Silver logo
The body color is black.
Gunmetal panel/Black logo
The body color is black.
Sky blue panel/Silver logo
The body color is gray.
Cherry blossom pink panel/Silver logo
The body color is gray.
*There are no differences in functionality and the switch design between the regular and limited edition.
This product is the successor to DF07703, which was discontinued in November 2022. For the differences between the DF177 and DF077 series, please refer to the specifications page.
*Defi-Link ADVANCE Control Unit is expressed as ADVANCE Control Unit or ADVANCE unit.

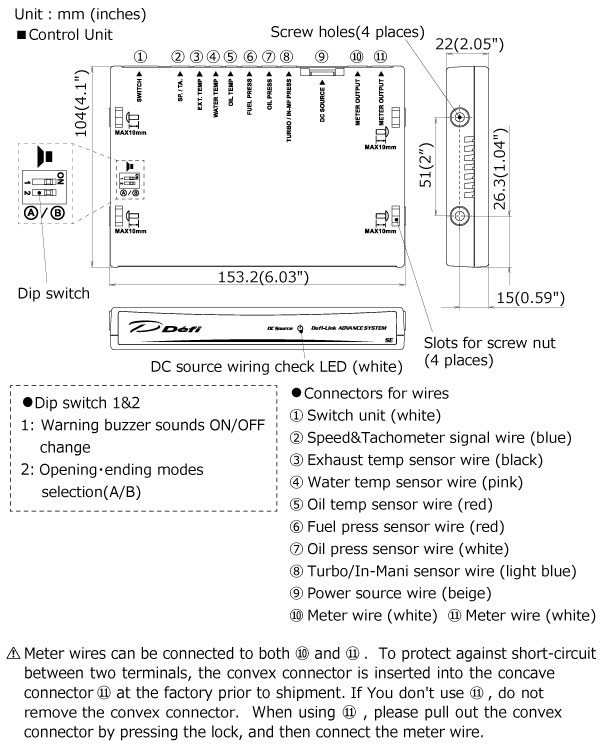

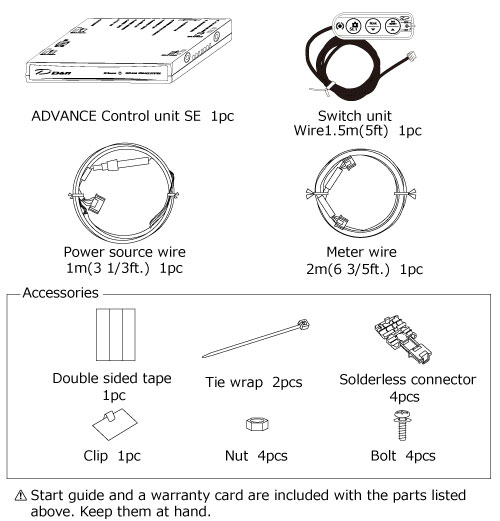

| Power supply voltage |
10V to 16V DC (12V vehicle only) |
|---|---|
| Current consumption | Maximum during 7 gauges are connected +B (battery) line 2A(IGN ON), 1mA(IGN OFF) +ILM (illumination) line 5mA |
| Illumination color | Switch unit：white (while illumination is on) Switch unit differential pressure LED：blue |
| Applicable number of cylinders | 1, 2, 3, 4, 5, 6, and 8 |
| Illumination input | 1）Illumination signal（12V wire while small lamp is on） 2）Illumination control signal range frequency range： 50～300Hz voltage range： 5～16V minimum pulse width： 0.2msec and above |
| Note |
*Products is for only on vehicles with a 12V electrical system. Never use products on 24V vehicles. *Products can not be installed in altered vehicles. *To install pressure gauges or temperature gauges, proper sensor attachments are necessary. The thread sizes of sensors are 1/8PT. |
| Product No. | Product name |
|---|---|
| DF07701 DF07703 |
Defi-Link ADVANCE Control Unit (EOL) |
| DF17701 DF17702 DF17703 |
Defi-Link ADVANCE Control Unit SE |
| Item | DF07701 | DF07703 | DF17701 | DF17702 | DF17702 | |
|---|---|---|---|---|---|---|
| Appearance | Unit panel design (lower right mark) |
None | 03 | SE/SE BLK | SE SKY | SE SAKURA |
| Color of the DC source wiring check LED |
Blue | White | Light blue | Pink | ||
| Color of the case | Black | Gray | ||||

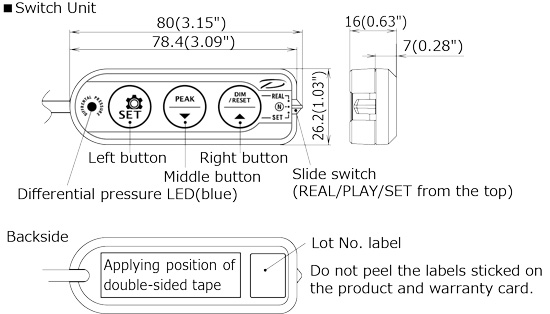

| Switch panel design | See the figure below. | |||||
| Function | Three minutes record and replay |
Available | Not available | |||
| Clock display when ADVANCE FD/ZD is connected |
ZDのみ可 | Not available | ||||
| Stopping oil pressure warning buzzer *1 |
Not available | Available | ||||
| Illumination control signal input *2 |
Not available （Available with CAN Driver） |
Available | ||||
*1 Even if oil pressure indicates 0kPa during idling stop, etc., the oil pressure warning buzzer can be prevented from sounding by setting the value to 0kPa with the DF177.
*2 In vehicles equipped with illumination control (vehicles with pulse-controlled illumination signals, such as European vehicles), the ADVANCE CAN Driver is necessary to make the illumination of Defi gauges work properly with the DF077 unit, but the DF177 unit allows the illumination control signal of vehicle to be input as an illumination on/off signal to the ADVANCE system.
