Racer Gauge

The production of Racer Gauge has been terminated in February, 2020.

Racer Gauges are quick-responsive and high-accurate analog gauges.
The dial are not visible until the ignition is turned on.

Gauges operates standalone and control unit is not necessary.

The illumination colors are blue, red, and white.
The pointer colors:JDM models are red. USDM models are red and white.
Refer to each lineup pages.

2 1/16″(52mm)
2 3/8″(60mm)
(Pointer: red)

JDM and
USDM series

Racer Gauge ign OFF Racer Gauge blue Racer Gauge red Racer Gauge white
Ignition off Ignition on
(Blue)
Ignition on
(Red)
Ignition on
(White)

2 1/16″(52mm)
(Pointer: white)

USDM series

Racer Gauge ign OFF Racer Gauge red
Ignition off Ignition on
(Red)
3 1/8″(80mm)
(Pointer: red)

JDM series

Racer Gauge ign OFF Racer Gauge ign OFF
Ignition off Ignition on
(Bue)
Racer Gauge ign OFF Racer Gauge ign OFF
Ignition on
(Red)
Ignition on
(White)
  • Racer Gauges cannnot be linked to the Defi-Link System or ADVANCE System.
  • Standalone
  • Commercial attachment necessary
  • Stepping motor:
    “STEP MASTER VS-2” for Φ52 and Φ60, and “STEP MASTER STS26A” for Φ80 provides smooth operation.
  • Control unit NOT necessary/non-link system
  • Illumination color: white/red/blue
  • Opening mode/Ending mode
  • LED illumination
  • Illumination ON/OFF: interlocked with vehicle illumination switch
  • Mounting bracket attached

Warning

  • Racer Gauge cannot be linked to Defi-Link ADVANCE system or Defi-Link System.
  • Racer Gauge operates standalone. Control unit is not necessary.
  • Stepping motor “STEP MASTER VS-2” provides smooth operation.
  • Ignition ON initiates self-luminescence gauge.

    Ignition off Ignition on (Blue) Ignition on (red) Ignition on (white)
    Ignition off Ignition on
    (Blue)
    Ignition on
    (Red)
    Ignition on
    (White)
  • Illumination using high-brightness LEDs
  • Lightning-like Opening / Closing mode

    Opening

    Opening

    Closing

    Closing
  • Self-diagnostics function monitors both sensor disconnection and short-circuiting during startup.

    a) Sensor disconnection check
    This function reports any in-proper connections, broken or disconnected sensor or sensor wire. The pointer will wave between 250 and 260 degrees.
    b) Short-circuiting check
    This function indicates any short circuit on the sensor or sensor wire.
    The pointer will wave between 10 and 20 degrees.

    Self-diagnostics
  • Full 270 degrees sweep dial provides ultimate visibility.
  • A mounting bracket and instrument case is provided with the product.
  • The red triangle of the regular position bezel can be used as a warning indicator and others.
  • Does not require the Defi-Link Control Unit for use.
80mm tachometer
  • Maximum angle of deflective 270 degrees (full sweep) is controlled by the microcomputer up to 4600 division (0.057degrees each) to provide high precision in the accuracy of information generated. The stepping motor is sufficient for quick response of all sorts of professional motorsports.
  • The gauge dial is invisible while the ignition switch is off. Once the ignition switch is turned on, a clear display appears by colored LED illumination. The gauge dial illumination and the red emitting needle pointer provide high visibility.

  • The scale is compressed to acquire great visibility and ease of use.
    *Wide-angle scale is used at the idling range 0~3,000RPM.
    *The scale is fitted to recent engine power band and linear scale is used from 3,000RPM to 11,000RPM.

  • The gauge dial and the needle pointer performs opening and closing modes interlocked with turning ON/OFF of the ignition.
  • The maximum RPM during driving can be stored and checked later.

  • There are 5 stages of brightness for the daytime and 6 stages for the nighttime. The brightness can be decreased/increased with the vehicle lights switched on/off.
  • Two customer-defined warning RPMs can be set. When the RPMs are exceeded, the warning LED blinks/lights up and the warning buzzer sounds.
  • The exclusive large-sized indicator which lights in green and red enhances the visibility of warnings in addition to the warning LED in the gauge.

  • The exclusive large-sized indicator which lights in green and red enhances the visibility of warnings in addition to the warning LED in the gauge.

  • Exclusive mounting band and back case
    The gauge is clinched by using the exclusive mounting band and back case. Wires can be stored in the back case neatly.

  • Regular Position Bezel for 80mm (3 1/8″) gauge is included in the product.
  • Racer Gauges cannnot be linked to the Defi-Link System or ADVANCE System.
Power supply voltage DC10 to 15V(Exclusive for 12V vehicle)
Current consumption +B line: MAX 120mA (Dark current 0mA)
IGN line: MAX 120mA
ILM line: MAX 2mA
Dial color Black (invisible until the ignition is turned on)
Illumination color Blue, Red, White
Pointer: Red, White
*The color cannot be switched.
*Refer to each lineup pages.
Size Size
NOTE *This product is for only on vehicles with a 12V electrical system. Never use this product on 24V vehicles.
*Products can not be installed in altered vehicles.
*Proper sensor attachments are necessary.
Power supply voltage DC10 to 15V(Exclusive for 12V vehicle)
Current consumption +B(Ignition on) Maximum(six gauges) 2.5A
Applicable Number of Cylinders 1, 2, 3, 4, 5, 6, 8
Applicable Engine speed Pulse
Display Range 0~9000RPM, 0~11000RPM
Size and part names
NOTE *Products is for only on vehicles with a 12V electrical system. Never use products on 24V vehicles.
*Products can not be installed in altered vehicles.

Racer Gauges are available in Imperial units(PSI, deg F) and SI units(kPa, deg C).

White, red, and blue illumination colors are available. The illumination color cannot be switched.

Pictures may differ from the real products by processes and photography conditions, etc.

Meter Unit Size
USDM models
(Imperial unit)
SI models 2 1/16in.
(52mm)
2 3/8in.
(60mm)
3 1/8in.
(80mm)
Turbo/Boost PSI, inHg kPa A A N/A
Pressure PSI kPa A A N/A
Temperature deg F deg C A A N/A
Exhaust Temp. deg F deg C A N/
Volt V V A A N/A
Tachometer RPM N/A N/A A
A: AVAILABLE N/A: NOT AVAILABLE
  • Racer Gauges cannnot be linked to the Defi-Link System or ADVANCE System.

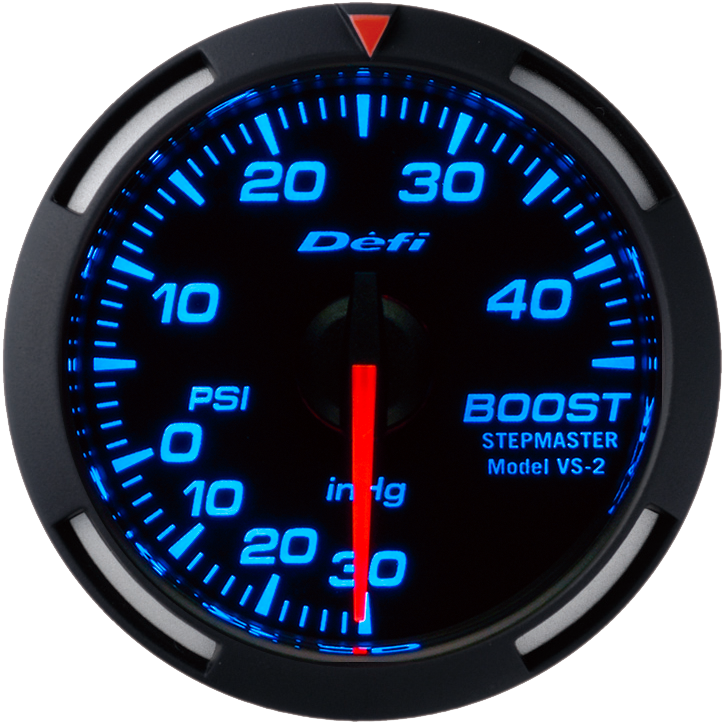

DF14601
BOOST

DF14601

-30inHg to +45PSI

Blue Racer Gauge

DF14602
BOOST

DF14602

-30inHg to +45PSI

Red Racer Gauge
Red Pointer

DF14603
BOOST

DF14603

-30inHg to +45PSI

White Racer Gauge

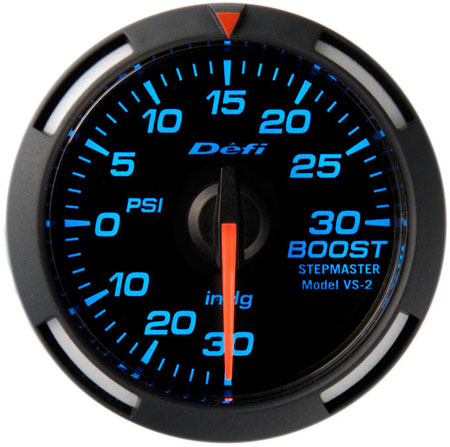

DF06501
BOOST

DF06501

-30inHg to +30PSI

Blue Racer Gauge

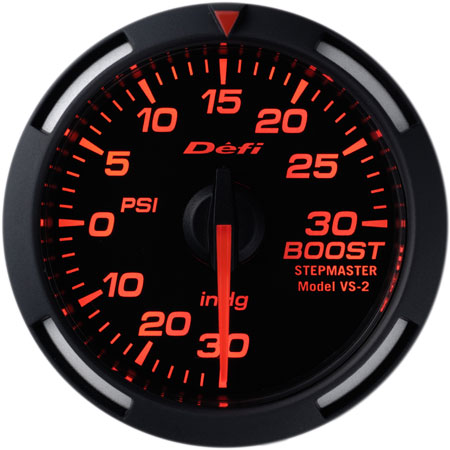

DF06502
BOOST

DF06502

-30inHg to +30PSI

Red Racer Gauge
Red Pointer

DF06507

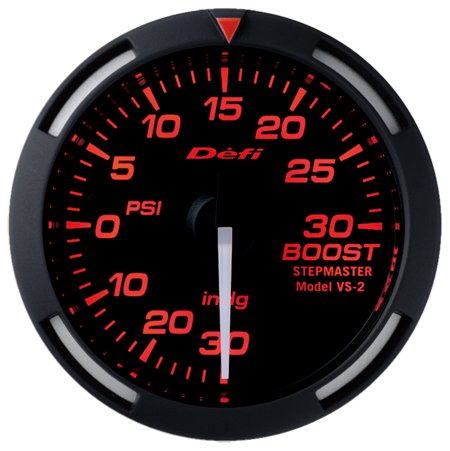

BOOST

DF06507

-30inHg to +30PSI

Red Racer Gauge
Red Pointer

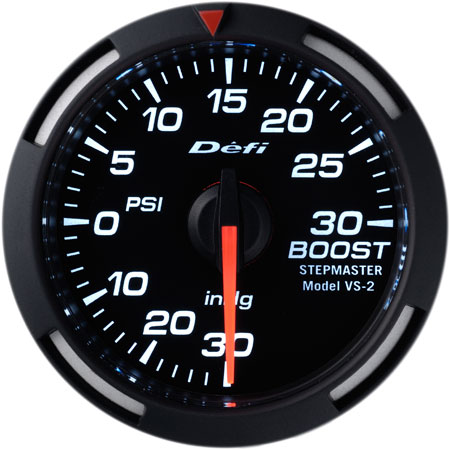

DF06503
BOOST

DF06503

-30inHg to +30PSI

White Racer Gauge

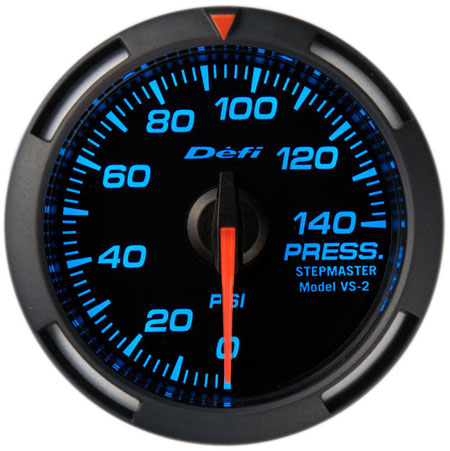

DF06601
PRESSURE

DF06601

0 to 140PSI

Blue Racer Gauge

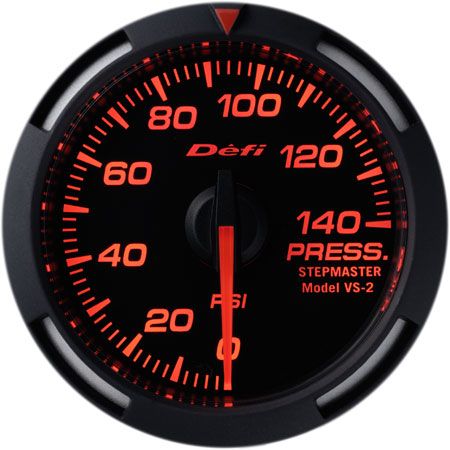

DF06602
PRESSURE

DF06602

0 to 140PSI

Red Racer Gauge
Red Pointer

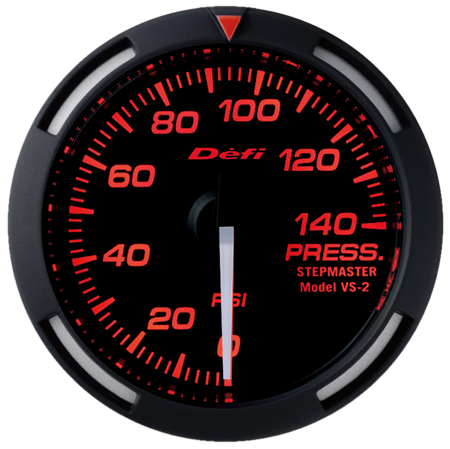

DF06607
PRESSURE

DF06607

0 to 140PSI

Red Racer Gauge
white Pointer

DF06603
PRESSURE

DF06603

0 to 140PSI

White Racer Gauge

DF06701

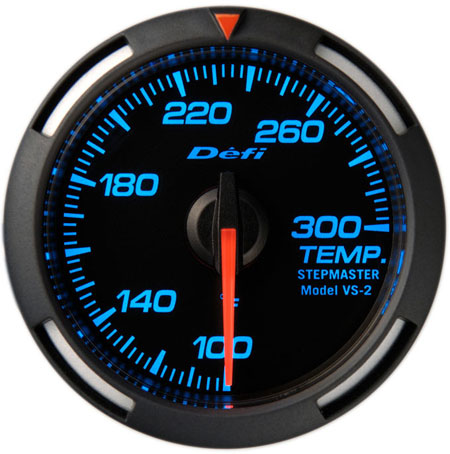

TEMPERATURE

DF06701

100 to 300 deg F

Blue Racer Gauge

DF06702
TEMPERATURE

DF06702

100 to 300 deg F

Red Racer Gauge
Red Pointer

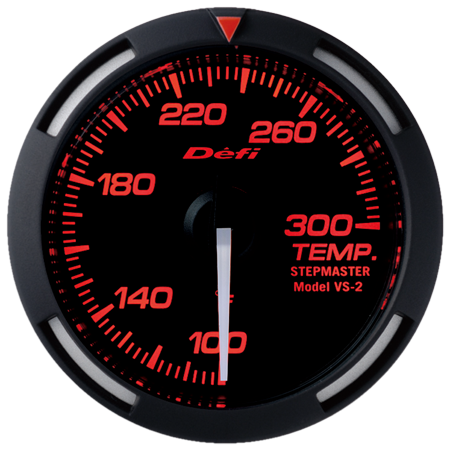

DF06707
TEMPERATURE

DF06707

100 to 300 deg F

Red Racer Gauge
white Pointer

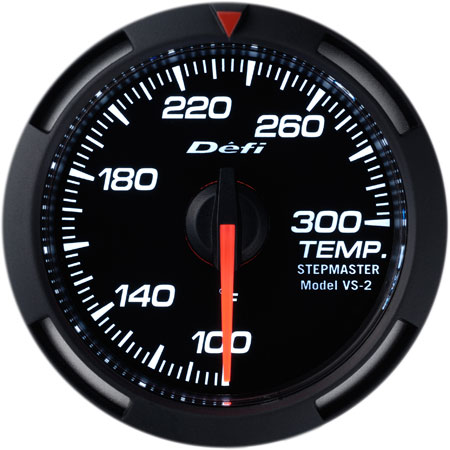

DF06703
TEMPERATURE

DF06703

100 to 300 deg F

White Racer Gauge

DF06801

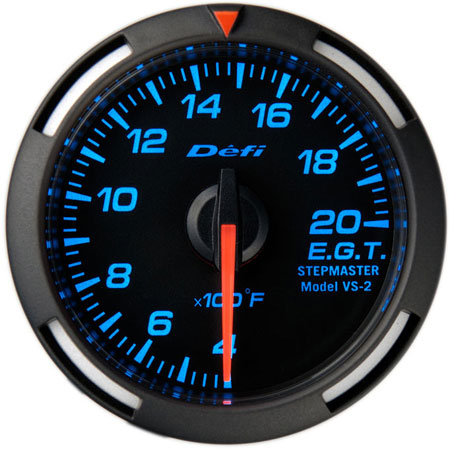

EXHAUST TEMPERATURE

DF06801

400 to 2000 deg F

Blue Racer Gauge

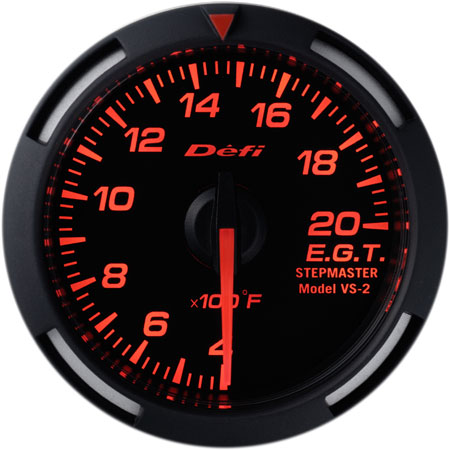

DF06802
EXHAUST TEMPERATURE

DF06802

400 to 2000 deg F

Red Racer Gauge
Red Pointer

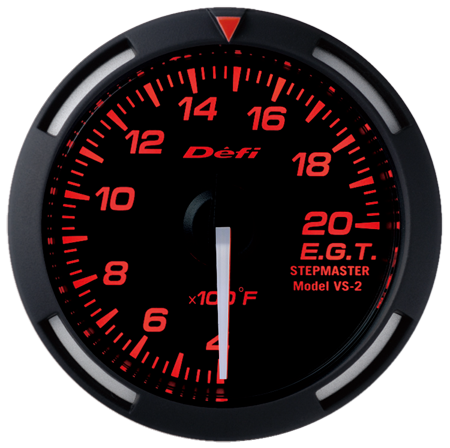

DF06807
EXHAUST TEMPERATURE

DF06807

400 to 2000 deg F

Red Racer Gauge
White Pointer

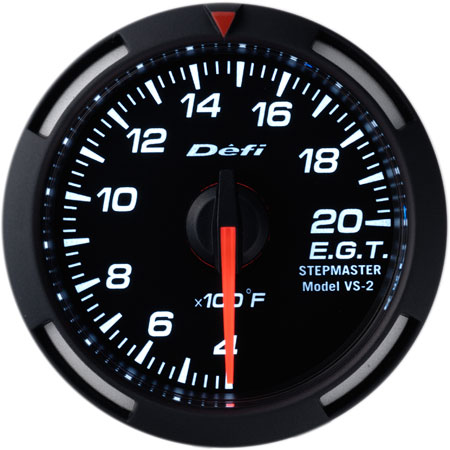

DF06803
EXHAUST TEMPERATURE

DF06803

400 to 2000 deg F

White Racer Gauge

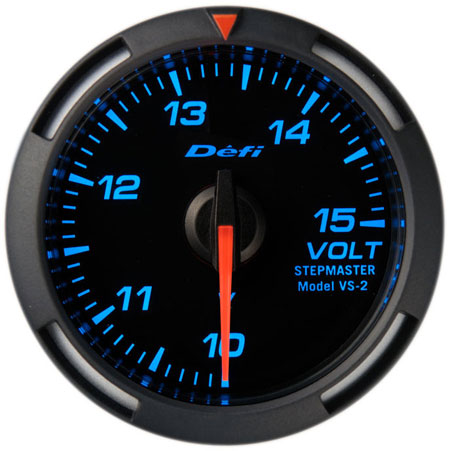

DF07004
VOLT

DF07004

10 to 15V

Blue Racer Gauge

DF07005
VOLT

DF07005

10 to 15V

Red Racer Gauge
Red Pointer

DF07006
VOLT

DF07006

10 to 15V

White Racer Gauge

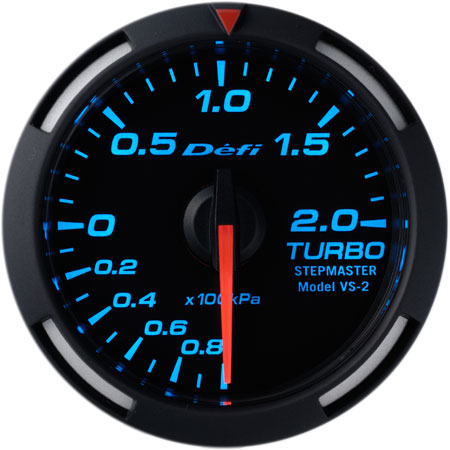

DF06504
TURBO

DF06504

-100kPa to +200kPa

Blue Racer Gauge

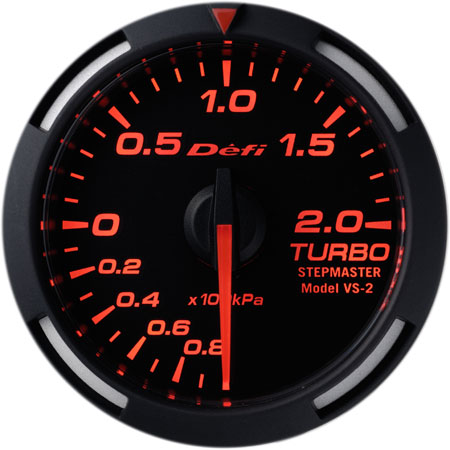

DF06505
TURBO

DF06505

-100kPa to +200kPa

Red Racer Gauge

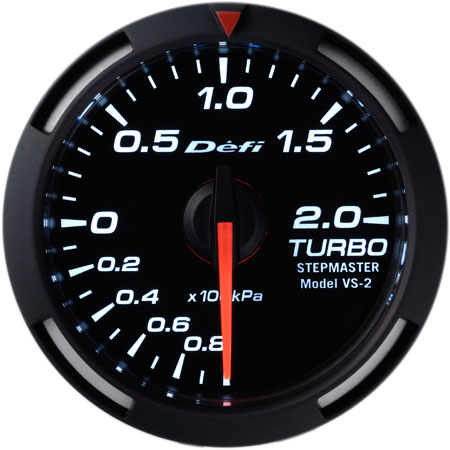

DF06606
TURBO

DF06606

-100kPa to +200kPa

White Racer Gauge

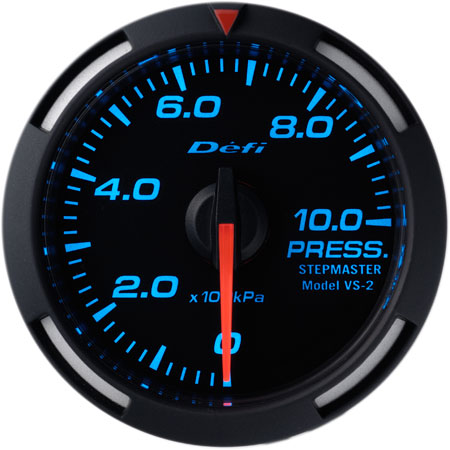

DF06604
PRESSURE

DF06604

0 to 1,000kPa

Blue Racer Gauge

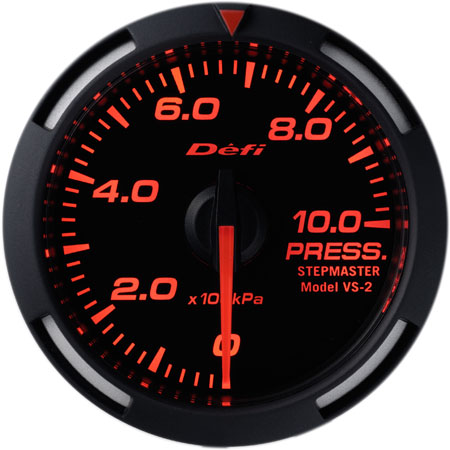

DF06605
PRESSURE

DF06605

0 to 1,000kPa

Red Racer Gauge

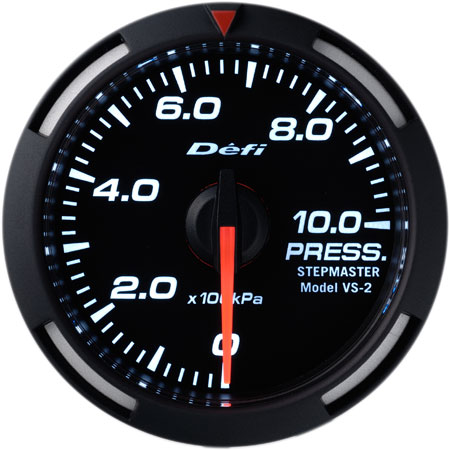

DF06606
PRESSURE

DF06606

0 to 1,000kPa

White Racer Gauge

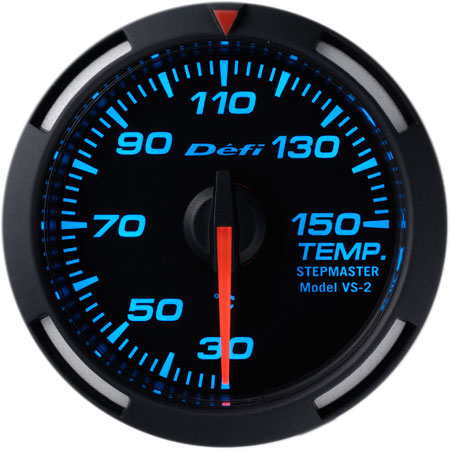

DF06704
TEMPERATURE

DF06704

100 to 300 deg F

Blue Racer Gauge

DF06705
TEMPERATURE

DF06705

100 to 300 deg F

Red Racer Gauge
Red Pointer

DF06706
TEMPERATURE

DF06706

100 to 300 deg F

White Racer Gauge

DF006804
EXHAUST TEMPERATURE

DF006804

400 to 2000 deg F

Blue Racer Gauge

DF006805
EXHAUST TEMPERATURE

DF006805

400 to 2000 deg F

Red Racer Gauge

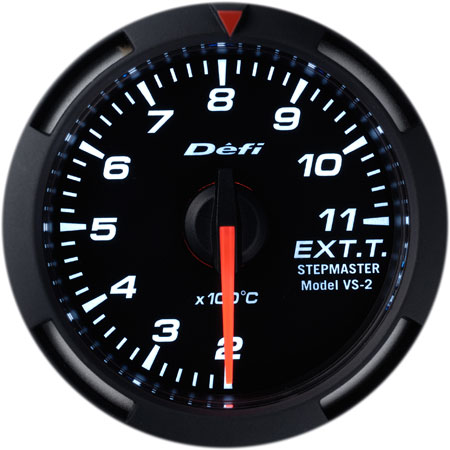

DF006806
EXHAUST TEMPERATURE

DF006806

400 to 2000 deg F

White Racer Gauge

DF07004
VOLT

DF07004

10 to 15V

Blue Racer Gauge

DF07005
VOLT

DF07005

10 to 15V

Red Racer Gauge

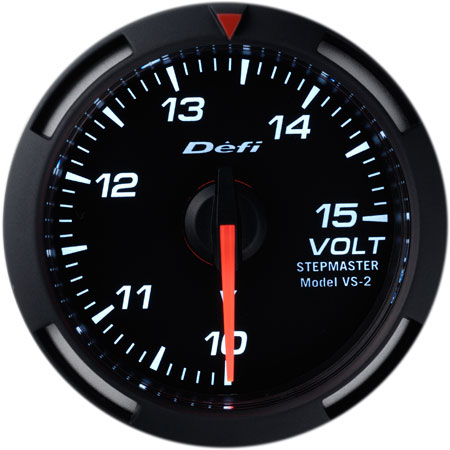

DF07006
VOLT

DF07006

10 to 15V

White Racer Gauge

Racer Gauges are available in Imperial units(PSI, deg F) and SI units(kPa, deg C).

White, red, and blue illumination colors are available. The illumination color cannot be switched.

Pictures may differ from the real products by processes and photography conditions, etc.

Meter Unit Size
USDM models
(Imperial unit)
SI models 2 1/16in.
(52mm)
2 3/8in.
(60mm)
3 1/8in.
(80mm)
Turbo/Boost PSI, inHg kPa A A N/A
Pressure PSI kPa A A N/A
Temperature deg F deg C A A N/A
Exhaust Temp. deg F deg C A A N/A
Volt V V A A N/A
Tachometer RPM N/A N/A A
A: AVAILABLE N/A: NOT AVAILABLE

The production of 2 3/8″ Blue and White Racer Gauges was ended in August, 2013.
The production of 2 3/8″ Red Racer Gauge is continuing.

DF11502
BOOST

DF11502

0-30inHg to +30PSI

Red Racer Gauge

DF11602
PRESSURE

DF11602

0 to 140PSI

Red Racer Gauge

DF11702
TEMPERATURE

DF11702

100 to 300 deg F

Red Racer Gauge

DF11802
EXHAUST TEMPERATURE

DF11802

400 to 2000 deg F

Red Racer Gauge

DF11902
VOLT

DF11902

10 to 15V

Red Racer Gauge

DF11504
TURBO

DF11504

-100kPa to +200kPa

Blue Racer Gauge

DF11505
TURBO

DF11505

-100kPa to +200kPa

Red Racer Gauge

DF11506
TURBO

DF11506

-100kPa to +200kPa

white Racer Gauge

DF11604
PRESSURE

DF11604

0 to 1,000kPa

Blue Racer Gauge

DF11605
PRESSURE

DF11605

0 to 1,000kPa

Red Racer Gauge

DF11606
PRESSURE

DF11606

0 to 1,000kPa

white Racer Gauge

DF11704
TEMPERATURE

DF11704

30 to 150 deg C

Blue Racer Gauge

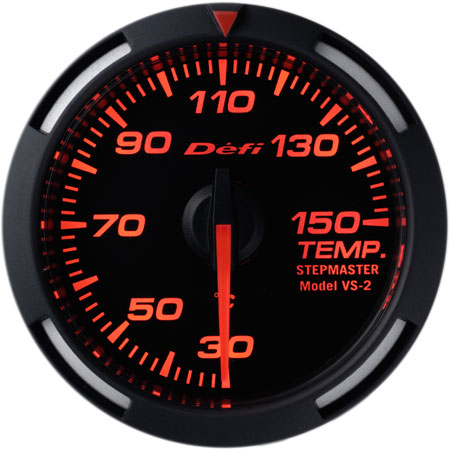

DF11705
TEMPERATURE

DF11705

30 to 150 deg C

Red Racer Gauge

DF11706
TEMPERATURE

DF11706

30 to 150 deg C

white Racer Gauge

DF11804
EXHAUST TEMPERATURE

DF11804

200 to 1,100 deg C

Blue Racer Gauge

DF11805
EXHAUST TEMPERATURE

DF11805

200 to 1,100 deg C

Red Racer Gauge

DF11806
EXHAUST TEMPERATURE

DF11806

200 to 1,100 deg C

white Racer Gauge

DF11901
VOLT

DF11901

10 to 15V

Blue Racer Gauge

DF11902
VOLT

DF11902

10 to 15V

Red Racer Gauge

DF11903
VOLT

DF11903

10 to 15V

white Racer Gauge

White, red, and blue illumination colors are available. The illumination color cannot be switched.

Pictures may differ from the real products by processes and photography conditions, etc.

Meter Unit Size
USDM models
(Imperial unit)
SI models 2 1/16in.
(52mm)
2 3/8in.
(60mm)
3 1/8in.
(80mm)
Turbo/Boost PSI, inHg kPa A A N/A
Pressure PSI kPa A A N/A
Temperature deg F deg C A A N/A
Exhaust Temp. deg F deg C A A N/A
Volt V V A A N/A
Tachometer RPM N/A N/A A
A: AVAILABLE N/A: NOT AVAILABLE
DF12001
Tachometer

DF12001

0RPM~9000RPM

Blue Racer Gauge

DF12002
Tachometer

DF12002

0RPM~9000RPM

Red Racer Gauge

DF12003
Tachometer

DF12003

0RPM~9000RPM

white Racer Gauge

Only 52mm series
Only 52mm series

What’s the difference between 30PSI and 45PSI sensors

There are two variations of the Boost sensors, “For 45PSI (PDF14604S)” or “For 30PSI (PDF06503S).
Please be careful that the body color and the stamp on it are different.
The Sensor Harness (PDF06505H) is common. Please make sure those points before purchasing.

Only 52mm series

The following parts are included with this product. Confirm that all parts are present before installing the product. In addition, these parts are sold separately for part replacement. Contact your retailer for further information.
NOTE: A Japanese operation manual is included other than the parts listed below. They are effective only in Japan.

Part Name Quantity Part Name Quantity
Gauge 1 Mounting bracket 1
Switch unit (wire 45cm, 1.48ft) 1 Attachment for switch unit 1
Regular Position Bezel 1 M6 bolt 2
Back case 1 Spring lock washer 2
Mounting band 1 Washer 2
Mounting rubber 1 Spacer 1
Power supply & tachometer signal wire 2.2m, 7.2ft 1 Buffer 1
Indicator (wire 20cm, 7.8in) 1 Double sided tape 1
Operation manual 1 Tapping screw 2
Terms and Conditions 1 Solderless connector 5
Warranty card 1

Support
