ADVANCE Control Unit

Defi-Link ADVANCE SYSTEM is the next generation system that adopted the interactive communication.

Defi-Link ADVANCE Control Unit is necessary to operate ADVANCE gauges and displays.

Part No.
DF07703 (From February, 2012 to November, 2022)
DF07701 (End of life in December, 2011)

The production of DF07701 has been ended in December, 2011 and DF07703 has been ended in November, 2022.
Please refer to the specification page for the difference between DF07701 and DF07703.

Defi-Link ADVANCE Control Unit is expressed as ADVANCE Control Unit or ADVANCE unit.

Interactive communication advanced system is implemented.
One ADVANCE Control Unit can control up to 7 Defi-Link Meter ADVANCE gauges and displays all in at a time. (Ex. 4 ADVANCE CRs and 3 ADVANCE BFs)

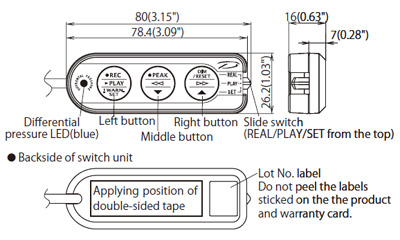

Gauges can be controlled from distance with the included switch unit.
Opening and closing modes can be selected from 2 variations.
2The installation of additional gauges is easy. Just connect it with the other two gauges and attach the wire to Advance Control Unit.
Power source indicator (blue LED) assures correct wiring.
Warning by buzzer sound when the warning LED is on (buzzer sound can be turned on / off).
Peak value and warning value during driving are stored. Driving data can be stored and replayed up to 3 minutes.
With both fuel pressure gauge and turbo installed, differential pressure can be monitored on the fuel pressure gauge screen.
ADVANCE Control Unit is threadably mountable.

The product of Defi-Link ADVANCE SYSTEM cannot be connected with the product of Defi-Link SYSTEM. It is not compatible with the product of Defi-Link SYSTEM. Sensors are common in ADVANCE system and Defi-Link System except turbo sensor, but sensor wires are not common.
When using ADVANCE Control Unit, please purchase ADVANCE gauges and displays additionally.

The production of DF07701 has been ended in December, 2011. DF07703 was released in February, 2012 with some functions added.

“03” is appeard in the lower right on the front panel of unit: DF07703 Nothing is appeard in the lower right on the front panel of unit: DF07701

Not only minimum values but also maximum values can be displayed in peak modes of oil pressure and fuel pressure.
The illumination of the switch unit is automatically turned on/off if ADVANCE ZD is installed.

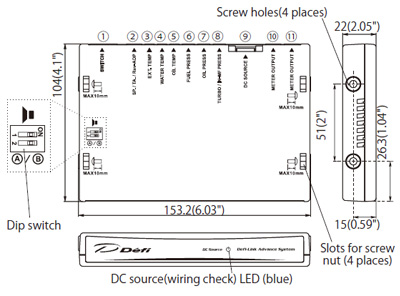

Power supply voltage	10V to 16V DC (12V vehicle only)
Current consumption	Maximum during 7 gauges are connected +B 2A(IGN ON), 5mA(IGN OFF) ILM 800mA
Applicable number of cylinders	1,2,3,4,5,6,8
Note	Products is for only on vehicles with a 12V electrical system. Never use products on 24V vehicles. Products can not be installed in altered vehicles. *To install pressure gauges or temperature gauges, proper sensor attachments are necessary. The thread sizes of sensors are 1/8PT.
