Summary

Defi-Link Meter ADVANCE RS is a gauge series which needs to be connected to Defi-Link ADVANCE Control Unit SE/ADVANCE Control Unit.

ADVANCE RS is designed to match well with Japanese vintage cars with nostalgic features. The dial face is black and the numbers and tick marks are white. The night illumination is classic green and classic white(warm white). The color is switchable between two colors.

The production of ADVANCE RS will be discontinued in the order of models that reach the limited number of units.
We are unable to respond to inquiries regarding stock quantity or remaining production, so please inquire with Defi’s official distributor or wholesaler for your area to see if you can place an order. If you want to purchase the product or need more information, please contact Defi’s official distributor, wholesaler, or retailer near you.
Map of distributors, wholesalers, and retailers
(March 10th, 2023)

60mm series was launched in November, 2022. The lineup is the same as for Φ52. Low-reflection glass is used for 60mm gauges. The Φ80 tachometers have also changed to the low-reflection glass and are now available under new part numbers.
Both Φ60 and 80 series are produced in limited quantities. The Φ52 will also be available in limited quantities from now on.
(November 25th, 2022)

The gauge diameter is 52mm, 60mm, and 80mm tachometer. Turbo 200kPa, intake manifold pressure, oil pressure, fuel pressure, oil temperature, water temperature, exhaust temperture, and tachometer are lined up.

The illumination color is green and warm white. The two colors can be switched. The brightness is turned down to make a nostalgic mood.

Nippon Seiki’s NS logo is printed on the dial face instead of Defi logo. It’s because the NS logo used to be printed on our OEM gauges.

The needle pointer is white while the illumination OFF and red while the illumination is ON.

One ADVANCE Control Unit operates up to 7 gauges or displays in total.

*Defi-Link ADVANCE Control unit SE/ADVANCE Control unit(sold separately) is necessary to operate RS gauges.

*Defi-Link Meter ADVANCE RS is expressed as ADVANCE RS or RS gauges.

Main specifications, functions, and features

ADVANCE System
ADVANCE Control Unit necessary
Commercial attachment necessary
Stepping motor: STS26/VS2
Illumination color: changeable between classic green and classic white
Illumination ON/OFF: interlocked with vehicle illumination switch
LED illumination
Indicator output
Built-in indicators
Driving data can be recorded & replayed
Opening mode/Ending mode
Size: 52mm/60mm/80mm tachometer
Applicable number of cylinders: 1, 2, 3, 4, 5, 6, and 8
Mounting bracket attached

*The illumination would be automatedly turned ON/OFF by connecting to ADVANCE FD/ZD.

Lineup

Turbo(200kPa)
Intake manifold pressure
Oil pressure
Fuel pressure
Oil temperature
Water temperature
Exhaust temperature
Tachometer

Lineup

Movie

Warning

The product of Defi-Link ADVANCE SYSTEM cannot be connected with the product of Defi-Link SYSTEM. It is not compatible with the product of Defi-Link SYSTEM. Sensors are common in ADVANCE system and Defi-Link System except turbo sensor, but sensor wires are not common.
Defi-Link ADVANCE Control Unit/SE is necessary to operate ADVANCE gauges.

Features

Design matches well with Japanese vintage cars with nostalgic features.

The night illumination color is switchable between classic green and classic white(warm white)

Interactive communication advanced system is implemented. What is ADVANCE System?

Gauges can be controlled from distance with the included switch unit.

Flat glass and precise graduation scale give more needle accuracy and high visibility.

Low-reflection glass is used for Φ60 and 80.
(Φ52 is regular glass., Φ80 is low reflection glass only for models after November 2022)

Opening and closing modes can be selected from 2 variations.

The installation of additional gauges is easy. Just connect it with the other two gauges and attach the wire to Advance Control Unit.

The light-emitting gauge always provides clear visibility with high contrast.

The needle pointer driven by original stepping motor has a smooth instantaneous response to rapid acceleration of high performance vehicles.

The microcontroller calibrates up to 270 degree angle in 3027 – 4600 segments (0.088°- 0.059°), and provides accurate vehicle information.

Self-diagnosis system turns the warning LED on to indicate any wire disconnection, short circuit and serial communication errors.

Warning by buzzer sound when the warning LED is on (buzzer sound can be turned on / off).

●Peak　●Warning

*The picture is ADVANCE BF.

Peak value and warning value during driving are stored. Driving data can be stored and replayed up to 3 minutes.

A mounting bracket, meter cup, regular position bezel are provided with this product.

With both fuel pressure gauge and turbo installed, differential pressure can be monitored on the fuel pressure gauge screen.

Specifications

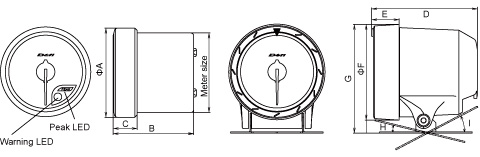

Size

52mm/60mm series

Unit(mm)

Gauge	φ52	φ60
A	58.3	66.3
B	52.2	54.6
C	15.5	17.9
D	68.6*	68.3*
E	17.8*	–
F	62.5*	–
G	69.6～71.1*	75.5～77*
H	15°*	18°*
I	28°*	32°*

*With Regular Position Bezel attached
Regular Position Bezel in the picure above is CR’s.

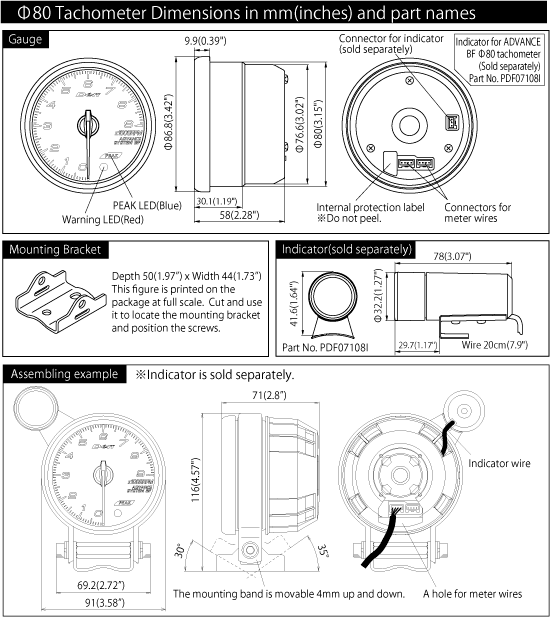

80mm Tachometer

The dial design is ADVANCE BF Tachometer’s.

Other specifications

Power supply voltage	Supplied from Defi-Link ADVANCE Control Unit
Current consumption	Maximum during 7 gauges are connected +B 2A(IGN ON), 5mA(IGN OFF) ILM 800mA
Dial plate color	Black
Illumination color	Switchable between classic green and classic white (warm white) Pointer: red (white during illuminatin off) Warning LED: red Peak LED: blue
Display range	Refer to lineup page.
Note	Products is for only on vehicles with a 12V electrical system. Never use products on 24V vehicles. Products can not be installed in altered vehicles. *To install pressure gauges or temperature gauges, proper sensor attachments are necessary. The thread sizes of sensors are 1/8PT.

Lineup

52/60mm series

Turbo

DF13501

-100kPa～+200kPa

Turbo

DF17901

-100kPa～+200kPa

Intake manifold pressure

DF13601

-100kPa～+20kPa

Intake manifold pressure

DF18001

-100kPa～+20kPa

Oil pressure

DF13701

0ｋPa～1000ｋPa

Oil pressure

DF18101

0ｋPa～1000ｋPa

Fuel pressure

DF13801

0ｋPa～600ｋPa

Fuel pressure

DF18201

0ｋPa～600ｋPa

Oil temperature

DF13901

50～150℃

Oil temperature

DF18301

50～150℃

Water temperature

DF14001

20～120℃

Water temperature

DF18401

20～120℃

Exhaust temperature

DF14101

200～1100℃

Exhaust temperature

DF18501

200～1100℃

80mm tachometer

Tachometer 80mm

DF18601

0～9000RPM
