Defi-Link Meter ADVANCE C2

The production of ADVANCE C2 ended on June 5th, 2014 (Chinese models ended on May, 2020).

ADVANCE C2’s dial are not visible except the biggest tick marks until the ignition is turned on.

ADVANCE C2’s
  • Defi-Link ADVANCE Control Unit (sold separately) is necessary to operate C2 gauges.
  • Defi-Link Meter ADVANCE C2 is expressed as ADVANCE C2 or C2 gauges.
  • Turbo/in-mani, oil press, fuel press, oil temp, water temp, exhaust temp, and tachometer are available.
  • Illumination and dial color: blue and pink (The color cannot be changed between two colors.)
  • Size: 60mm (except tachometer) and 80mm tachometer
  • One ADVANCE Control Unit operates up to 7 gauges or displays in total.

Main specifications, functions, and features

  • ADVANCE System
  • ADVANCE Control Unit necessary
  • Commercial attachment necessary
  • Stepping motor: STS26/VS2
  • Illumination color: blue/pink
  • Illumination ON/OFF: interlocked with vehicle illumination switch
  • LED illumination
  • Indicator output
  • Built-in indicators
  • Driving data can be recorded & replayed
  • Opening mode/Ending mode
  • Size: 60mm/80mm tachometer
  • Applicable number of cylinders: 1, 2, 3, 4, 5, 6, and 8
  • Mounting bracket attached

*The illumination would be automatedly dimmed by connecting to ADVANCE ZD.

Lineup

  • Turbo(200kPa)
  • Intake manifold pressure
  • Oil pressure
  • Fuel pressure
  • Oil temperature
  • Water temperature
  • Exhaust temperature
  • Tachometer

⇒Lineup

Movie

Warning

  • The product of Defi-Link ADVANCE SYSTEM cannot be connected with the product of Defi-Link SYSTEM. It is not compatible with the product of Defi-Link SYSTEM. Sensors are common in ADVANCE system and Defi-Link System except turbo sensor, but sensor wires are not common.
  • Defi-Link ADVANCE Control Unit is necessary to operate ADVANCE gauges.

Features

  • Three different looks consisted of IGN OFF, IGN ON, and night illumination

    Three different looks consisted of IGN OFF, IGN ON, and night illumination

  • The color can be chosen from blue and pink.

    *The illumination color cannot be changed.

  • Silver-coated Regular Position Bezel is attached.
  • Interactive communication advanced system is implemented. What is ADVANCE System?
  • Gauges can be controlled from distance with the included switch unit.
  • Flat glass and precise graduation scale give more needle accuracy and high visibility.
  • Opening and closing modes can be selected from 2 variations.
  • The installation of additional gauges is easy. Just connect it with the other two gauges and attach the wire to Advance Control Unit.
  • The light-emitting gauge always provides clear visibility with high contrast.
  • The needle pointer driven by original stepping motor has a smooth instantaneous response to rapid acceleration of high performance vehicles.
  • Brightness can be adjusted by selecting from five levels for daytime and nighttime separately.(nighttime dimming cancellation function is available.)
  • The microcontroller calibrates up to 270 degree angle in 3027 – 4600 segments (0.088°- 0.059°), and provides accurate vehicle information.
  • Self-diagnosis system turns the warning LED on to indicate any wire disconnection, short circuit and serial communication errors.
  • Warning by buzzer sound when the warning LED is on (buzzer sound can be turned on / off).

  • Warning by buzzer sound when the warning LED is on (buzzer sound can be turned on / off).

    The picture is ADVANCE BF.

  • Peak value and warning value during driving are stored. Driving data can be stored and replayed up to 3 minutes.
  • A mounting bracket, meter cup, regular position bezel are provided with this product.
  • With both fuel pressure gauge and turbo installed, differential pressure can be monitored on the fuel pressure gauge screen.

Specifications

Size

60mm series

60mm series

Unit（mm)

Gauge size60mm
A66.3
B52.2
C15.5
D68.6 *
E17.8 *
F70.5 *
G77.6～79.1 *
H15° *
I32° *

*With Regular Position Bezel attached
Regular Position Bezel in the picure above is CR’s.

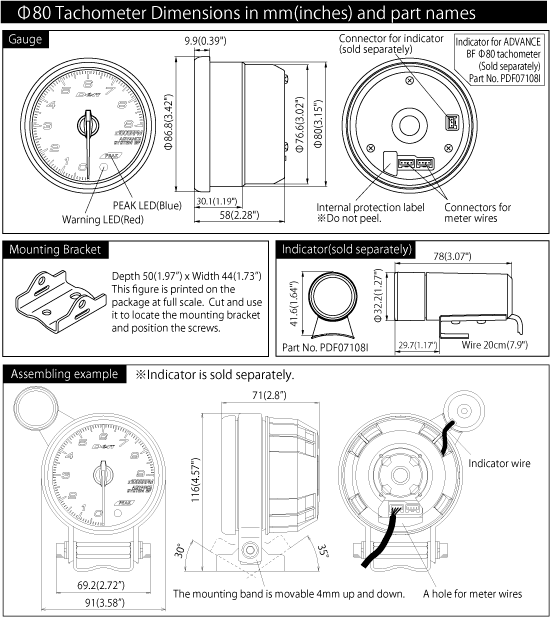

80mm Tachometer

80mm Tachometer

Other specifications

Power supply
voltage		Supplied from Defi-Link ADVANCE Control Unit
Current consumptionMaximum during 7 gauges are connected
+B 2A(IGN ON), 5mA(IGN OFF)
ILM 800mA
Dial plate colorBlack with blue/pink gradation
Illumination colorBlue/pink
*The color can not be changed.
Pointer: white
Warning LED: red
Peak LED: blue
Display rangeRefer to lineup page.
Applicable number of cylinders1,2,3,4,5,6,8
Note*Products is for only on vehicles with a 12V electrical system. Never use products on 24V vehicles.
*Products can not be installed in altered vehicles.
*To install pressure gauges or temperature gauges, proper sensor attachments are necessary. The thread sizes of sensors are 1/8PT.

Lineup

60mm series

DF12601
Turbo

DF12601

-100kPa～+200kPa

Blue model

DF12602
Turbo

DF12602

-100kPa～+200kPa

Pink model

DF12701
Intake manifold pressure

DF12701

-100kPa～+200kPa

Blue model

DF12702
Intake manifold pressure

DF12702

-100kPa～+200kPa

Pink model

DF12801
Oil pressure

DF12801

0kPa～1000kPa

Blue model

DF12802
Oil pressure

DF12802

0kPa～1000kPa

Pink model

DF12901
Fuel pressure

DF12901

0kPa～600kPa

Blue model

DF12902
Fuel pressure

DF12902

0kPa～600kPa

Pink model

DF13001
Oil temperature

DF13001

50～150℃

Blue model

DF13002
Oil temperature

DF13002

50～150℃

Pink model

DF13101
Water temperature

DF13101

20～120℃

Blue model

DF13102
Water temperature

DF13102

20～120℃

Pink model

DF13201
Exhaust temperature

DF13201

200～1100℃

Blue model

DF13202
Exhaust temperature

DF13202

200～1100℃

Pink model

80mm tachometer

DF13301
Tachometer 80mm

DF13301

0～9000RPM

Blue model

DF13302
Tachometer 80mm

DF13302

0～9000RPM

Pink model

DF13401
Tachometer 80mm

DF13401

0～11000RPM

Blue model

DF13402
Tachometer 80mm

DF13402

0～11000RPM

Pink model
